M&R Automotive Single 40in Light Bar SLIM for Toyota Tundra 3rd Gen (22-26) SR, SR5 & Limited

FITMENT INFORMATION

• Toyota Tundra 3rd Gen SR (2022, 2023, 2024, 2025, 2026)
• Toyota Tundra 3rd Gen SR5 (2022, 2023, 2024, 2025, 2026)
• Toyota Tundra 3rd Gen Limited (2022, 2023, 2024, 2025, 2026)

FITMENT NOTE

This light bar kit fits SR, SR5, and Limited Tundra trims only. It uses the factory grille openings and mounting locations, installs without drilling or cutting, and is designed not to interfere with the factory active grille shutters.

WHAT'S INCLUDED

• One 40-inch M&R Automotive SLIM LED light bar

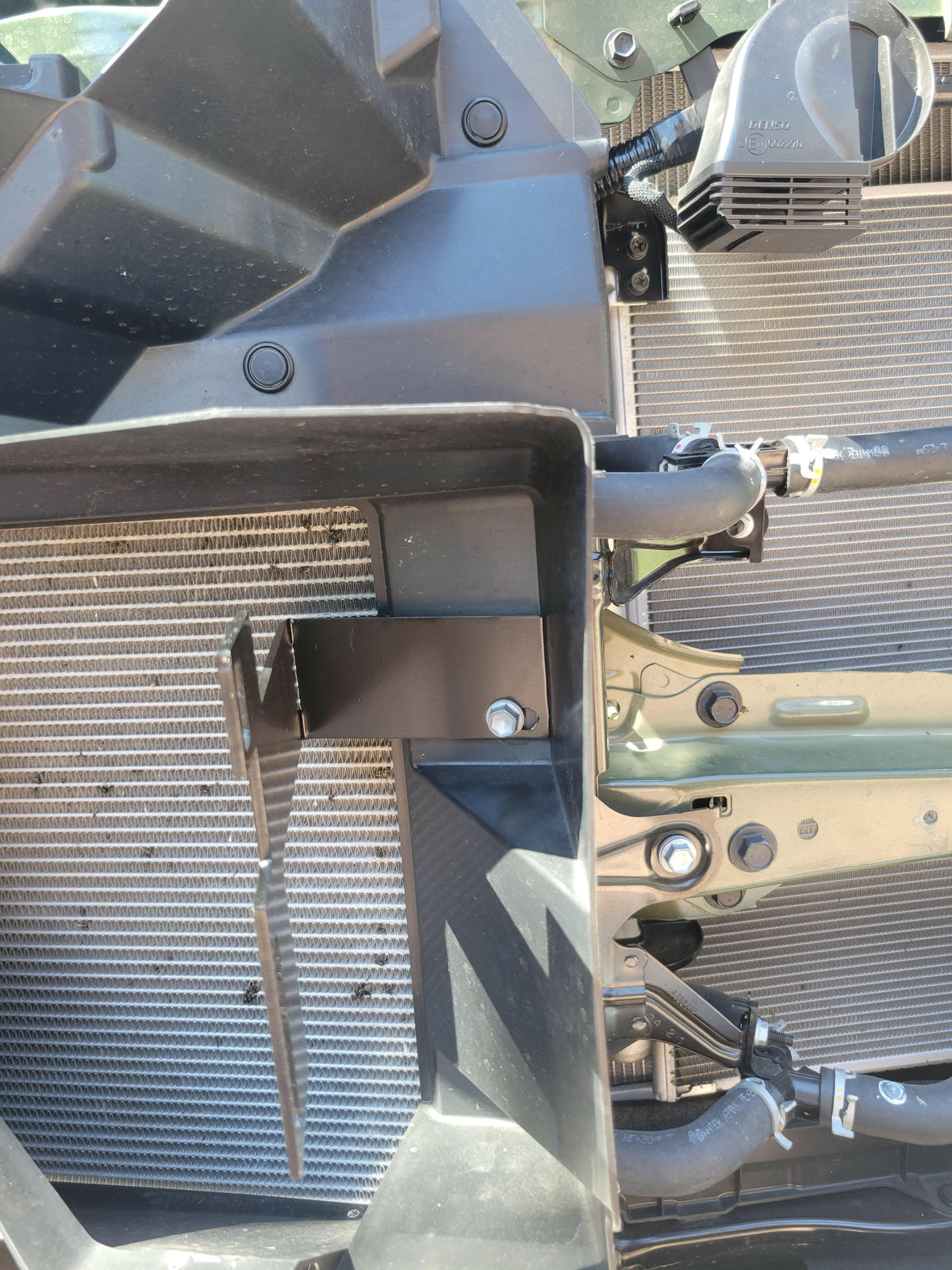

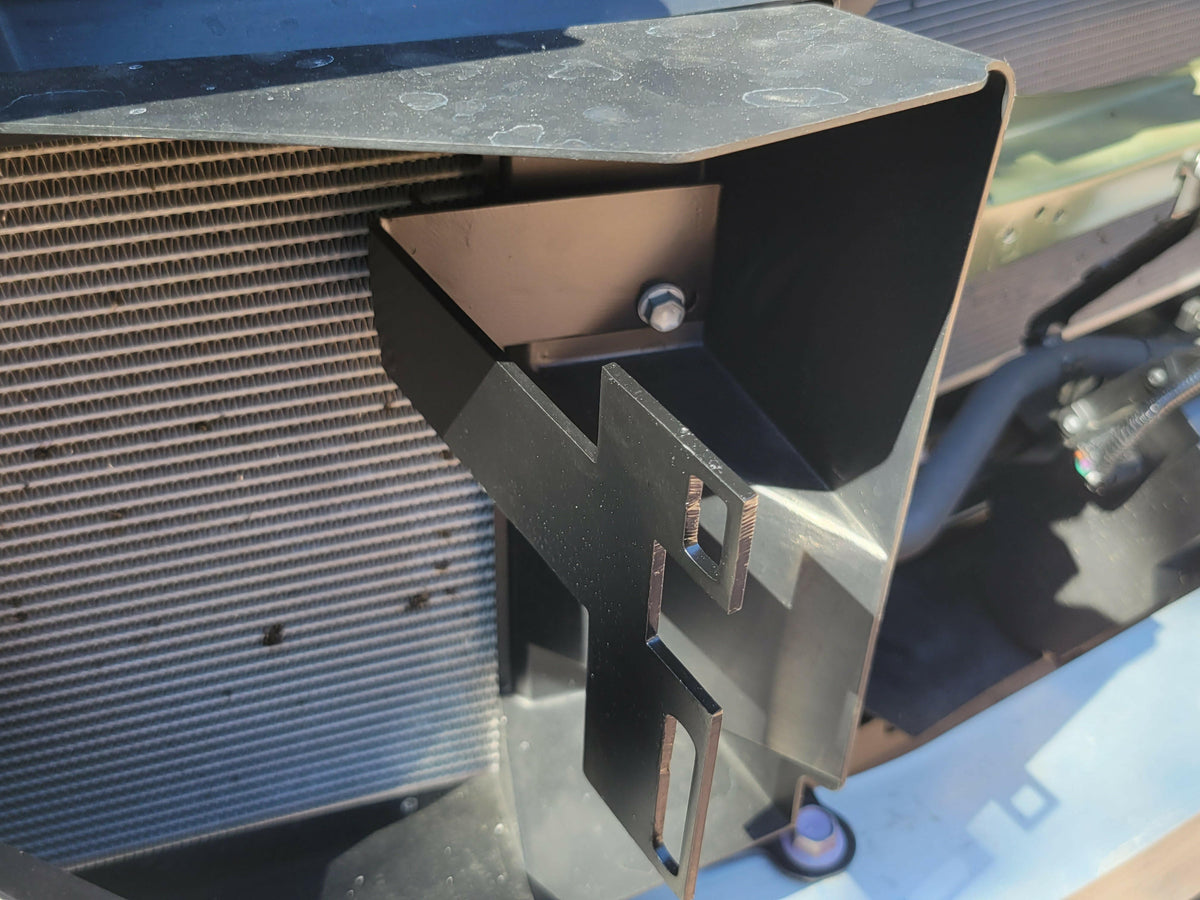

• Two powder-coated metal mounting brackets
• All required mounting hardware

CHOOSE YOUR LIGHT OUTPUT

Every SLIM bar uses a spot and flood beam pattern, combining a focused center beam with wider side coverage. It gives your Tundra usable distance down the trail without leaving the trail edges completely dark.

• White: A white off-road main beam for clear nighttime trail visibility. Off-road use only. It is not street legal and can blind oncoming traffic.
• Amber: A full amber off-road main beam that is useful in dust, fog, rain, and snow. Off-road use only. It is not street legal and can blind oncoming traffic.
• Dual Function White + Amber DRL: A full white main beam plus a low-output amber DRL backlight. The amber DRL is an appearance light, not an additional forward-driving beam. The white main beam is for off-road use only.

SPECS AND FEATURES

• 40-inch SLIM LED light bar
• Spot and flood beam pattern
• Direct bolt-on grille mounting with no cutting or drilling
• Designed to retain active grille-shutter operation
• Mounts behind the grille while covering only a small portion of the opening
• Surrounding grille mesh remains open for radiator airflow and factory cooling performance
• Powder-coated black metal brackets
• Reflector-style optics
• 36 LEDs per bar
• IP68-rated construction
• Rated 50,000-hour lifespan
• M&R Automotive lifetime warranty

LIGHT BAR SPECIFICATIONS

• White or White with Amber DRL:
  • Actual power: 102W
  • Main-beam draw: 8.5A at 12V
  • Measured output with lens: 8,340 lumens
  • LED type: CREE XT-E
  • Color temperature: 6000K
• Amber:
  • Actual power: 78W
  • Main-beam draw: 6.5A at 12V
  • Measured output with lens: 5,387 lumens
  • LED type: CREE XP-E2 Amber
• Amber DRL, dual-function version only:
  • Draw: 0.46A at 12V
• Bar dimensions: 38.93 x 0.75 x 1.63 inches

PRODUCT DESCRIPTION

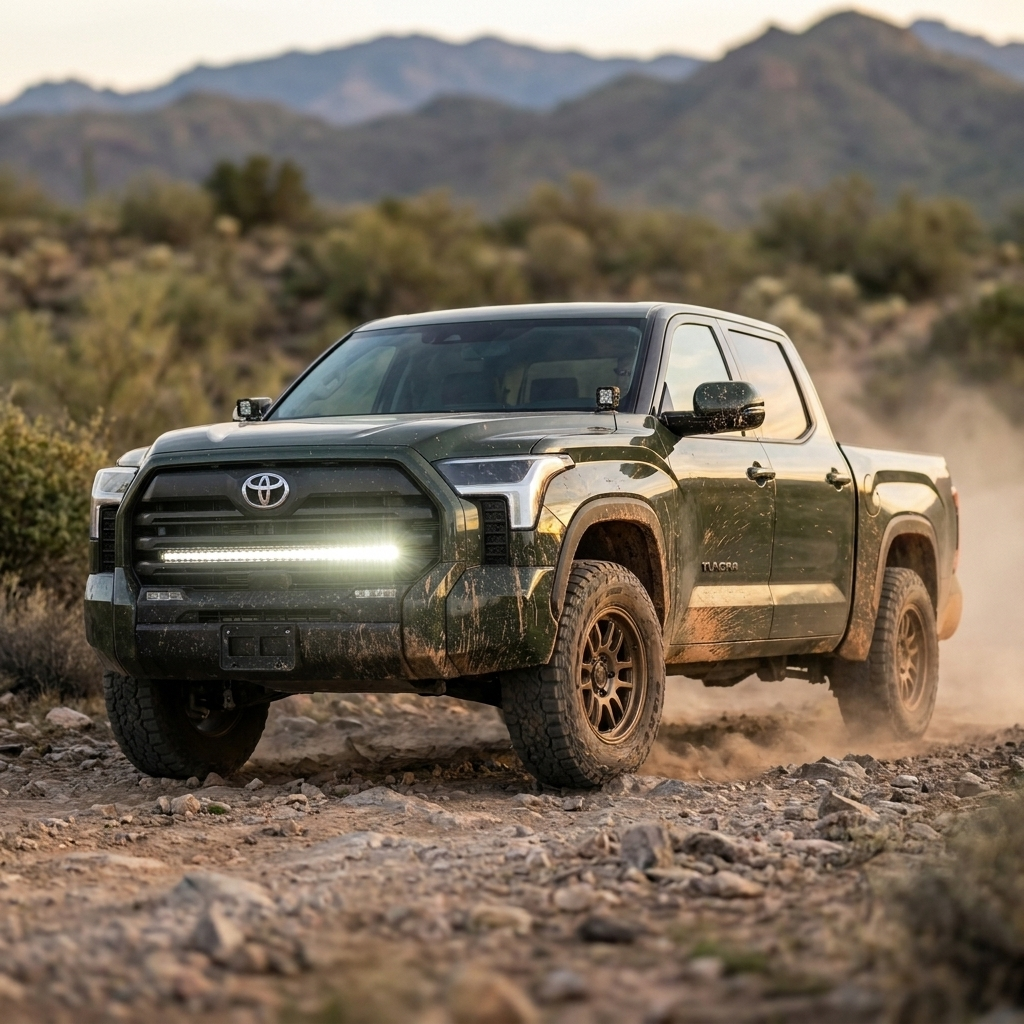

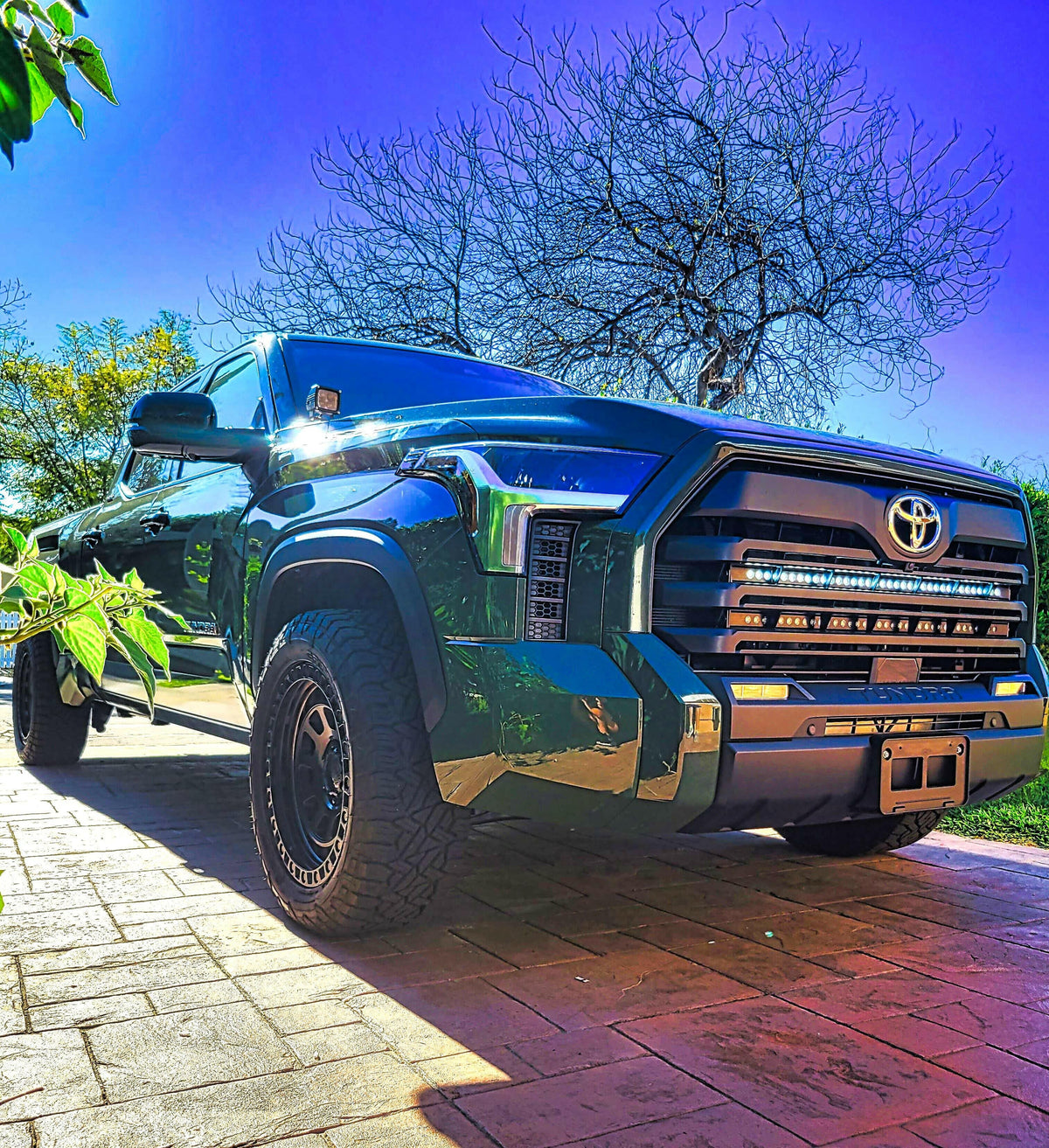

This is the clean way to add a serious amount of trail lighting to an SR, SR5, or Limited 3rd Gen Tundra without hanging a bulky bar over the bumper. The M&R 40-inch SLIM bar sits in the grille, uses vehicle-specific brackets, and keeps the installation looking like it belongs on the truck.

The slim housing matters on this platform. It is designed to sit ahead of the active grille shutters without interfering with them, while leaving most of the grille mesh open for normal airflow. You get additional forward lighting without turning the front of your Toyota truck into a blocked-off panel.

Choose white for a bright off-road beam, amber for poor-weather and dusty trail conditions, or dual function if you want the same white main beam with a separate amber DRL backlight for a more noticeable front-end look.

WIRING NOTES

A power-control wiring harness is not included. The light bar includes more than six feet of wire, which is intended to reach your Tundra's factory AUX-switch wiring if equipped. If your truck does not have AUX wiring, use an aftermarket harness, wireless switch system, or a custom wiring solution.

OFF-ROAD USE NOTICE

All white and amber main-beam options are intended for off-road use only. Do not use the main beam on public roads. Check local laws before installing or operating auxiliary lighting.

INSTALLATION VIDEO

ABOUT THE SLIM LIGHT BAR

ABOUT M&R AUTOMOTIVE

M&R Automotive builds vehicle-specific auxiliary-lighting kits for truck and SUV owners who want a cleaner install than a generic light-bar bracket can provide. Their Tundra kits use application-specific mounts, include the needed mounting hardware, and are backed by a lifetime warranty.
