M&R Automotive LED Reverse Light Kit for Toyota Land Cruiser 250 (24-26)

FITMENT INFORMATION

• Toyota Land Cruiser 1958 (2024, 2025, 2026)
• Toyota Land Cruiser (2024, 2025, 2026)

FITMENT NOTE

• Designed for the 250-Series Toyota Land Cruiser only.
• This kit adds to the factory reverse lights. It does not replace them.

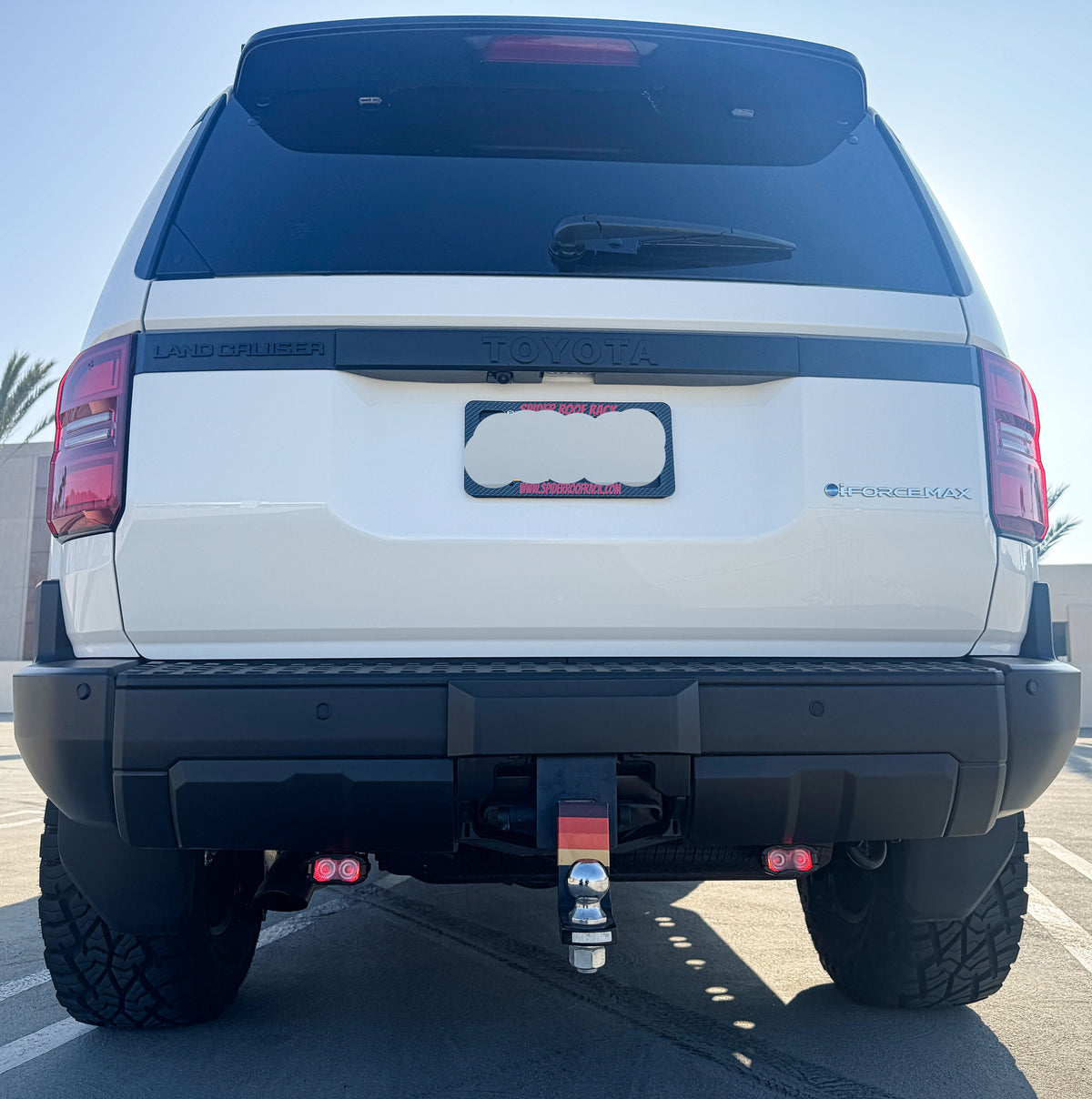

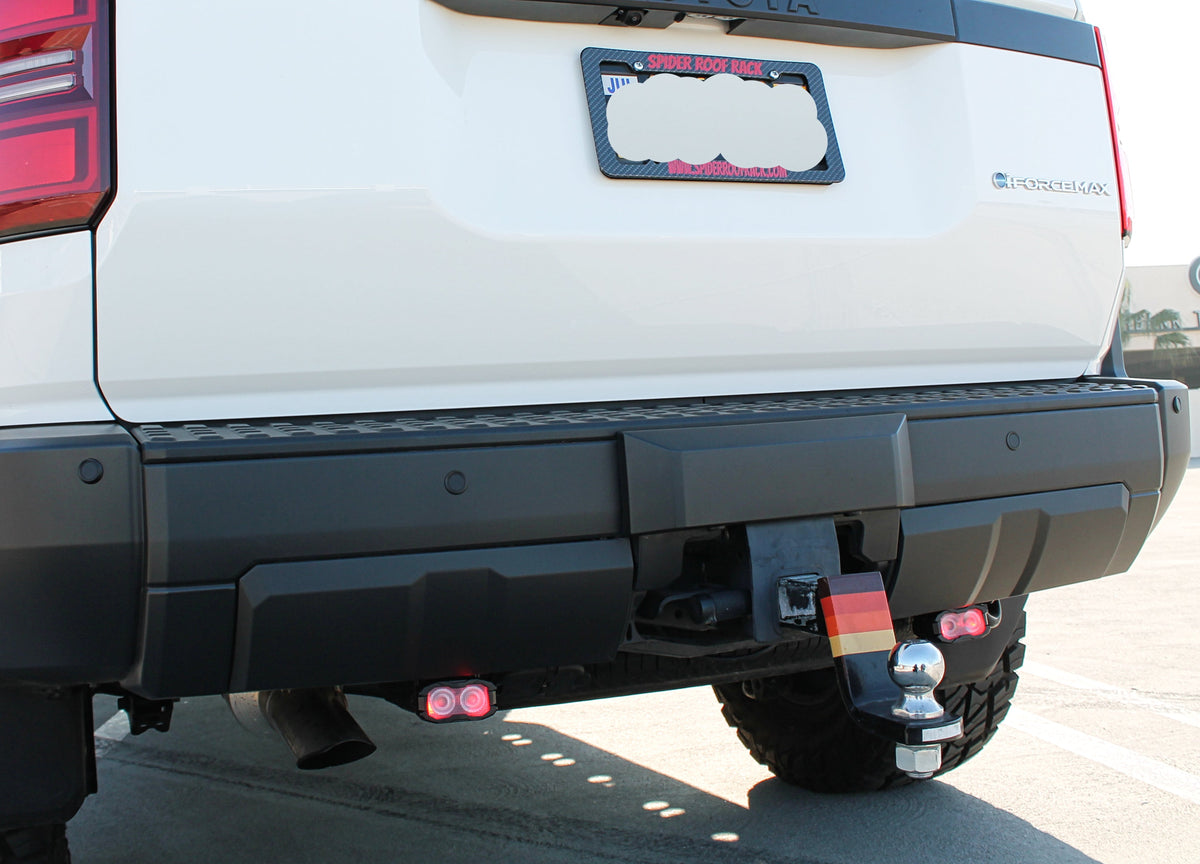

• Each light pod mounts to a vehicle-specific, powder-coated black metal bracket at the rear of the vehicle.
• No cutting or drilling is required.

CHOOSE YOUR BACKLIGHT COLOR

Every kit includes the same pair of rear-facing white main lights. Choose the backlight color based on how you want to use the additional wiring function.

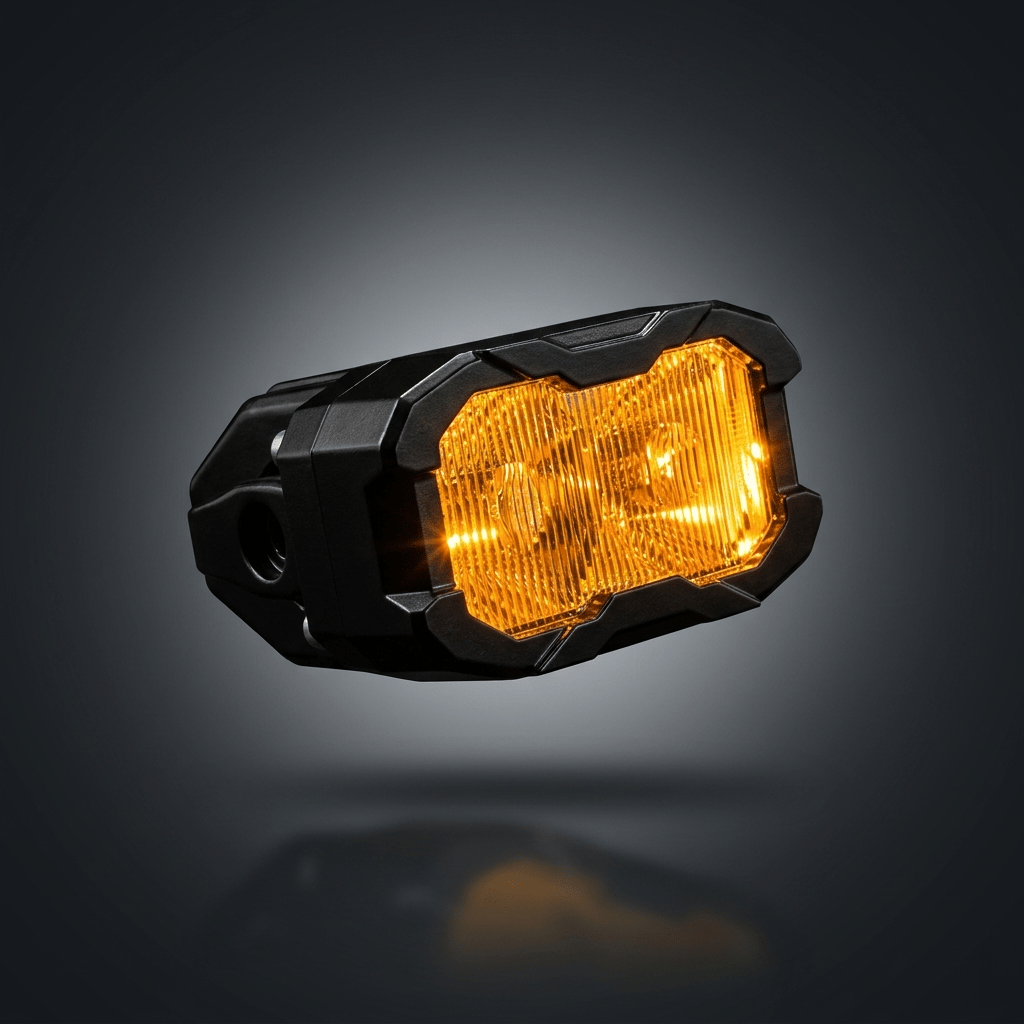

• Amber Backlight: Can be wired as a turn-signal function.

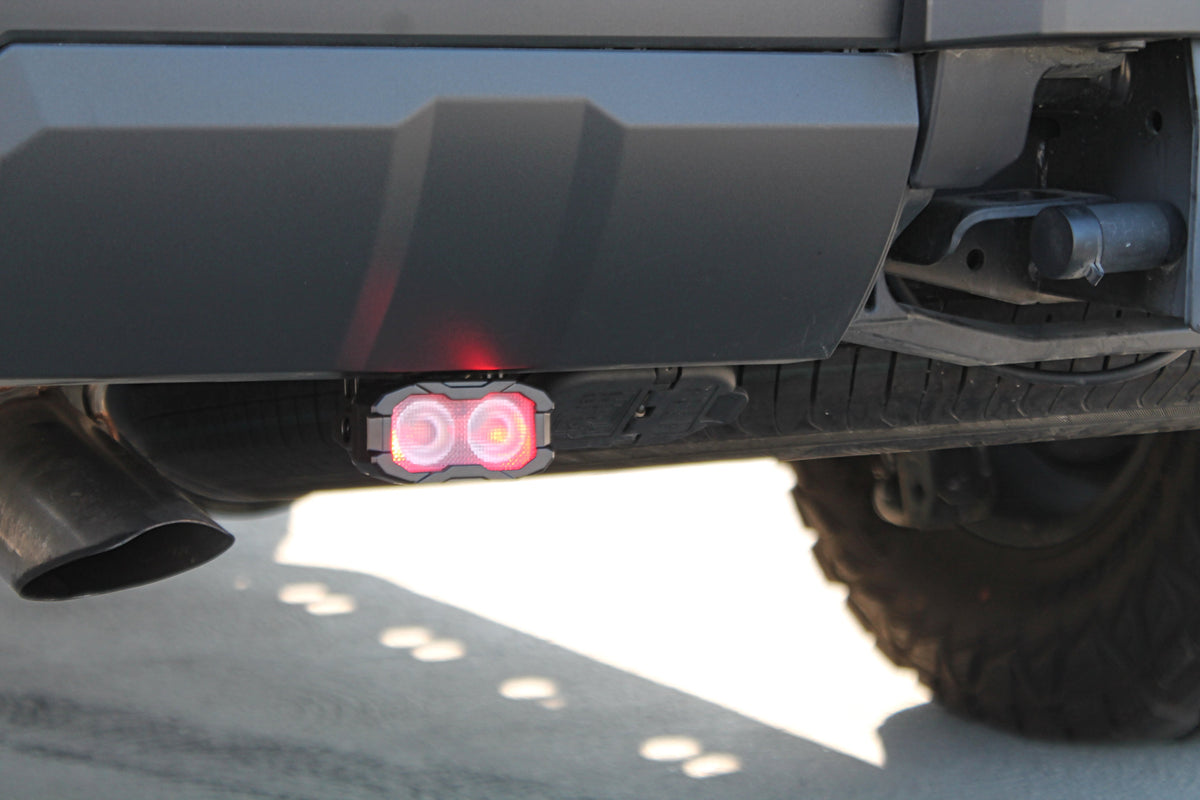

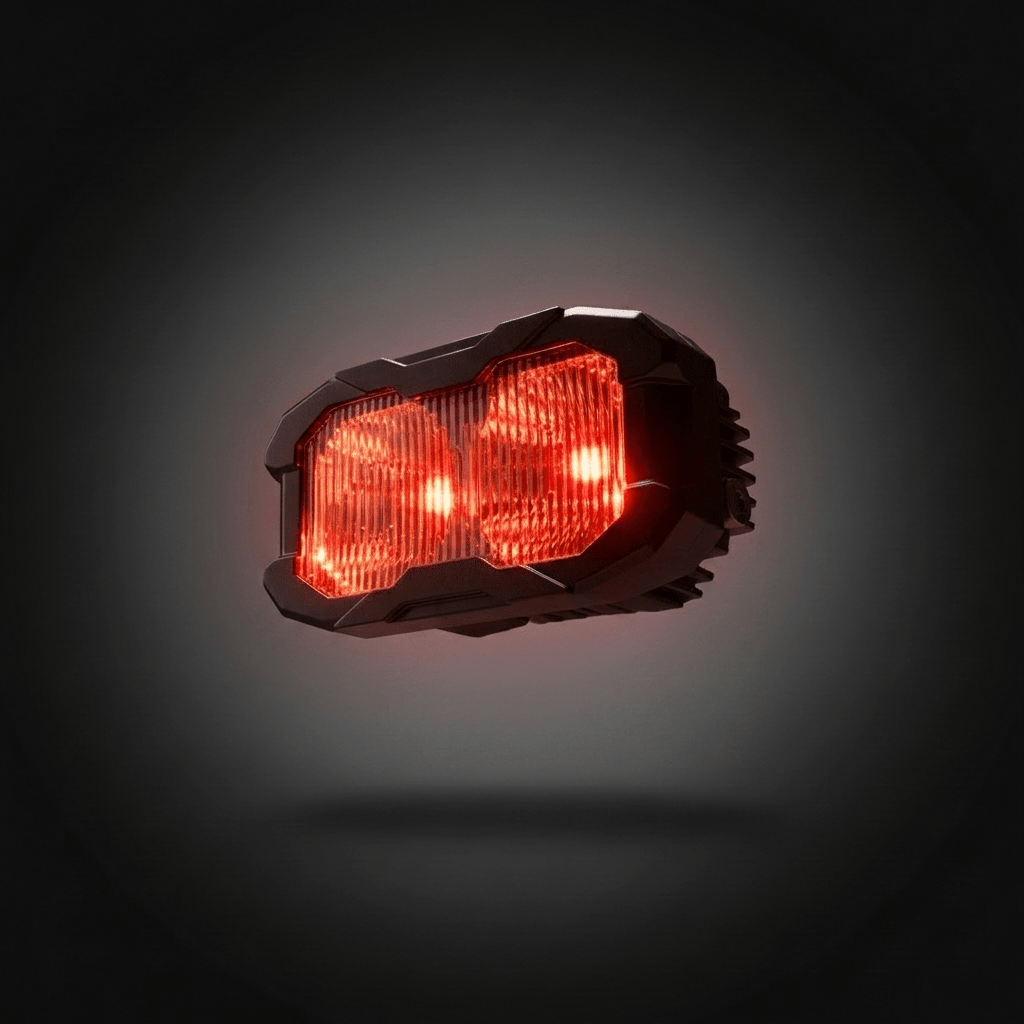

• Red Backlight: Can be wired as a turn-signal or brake-light function.

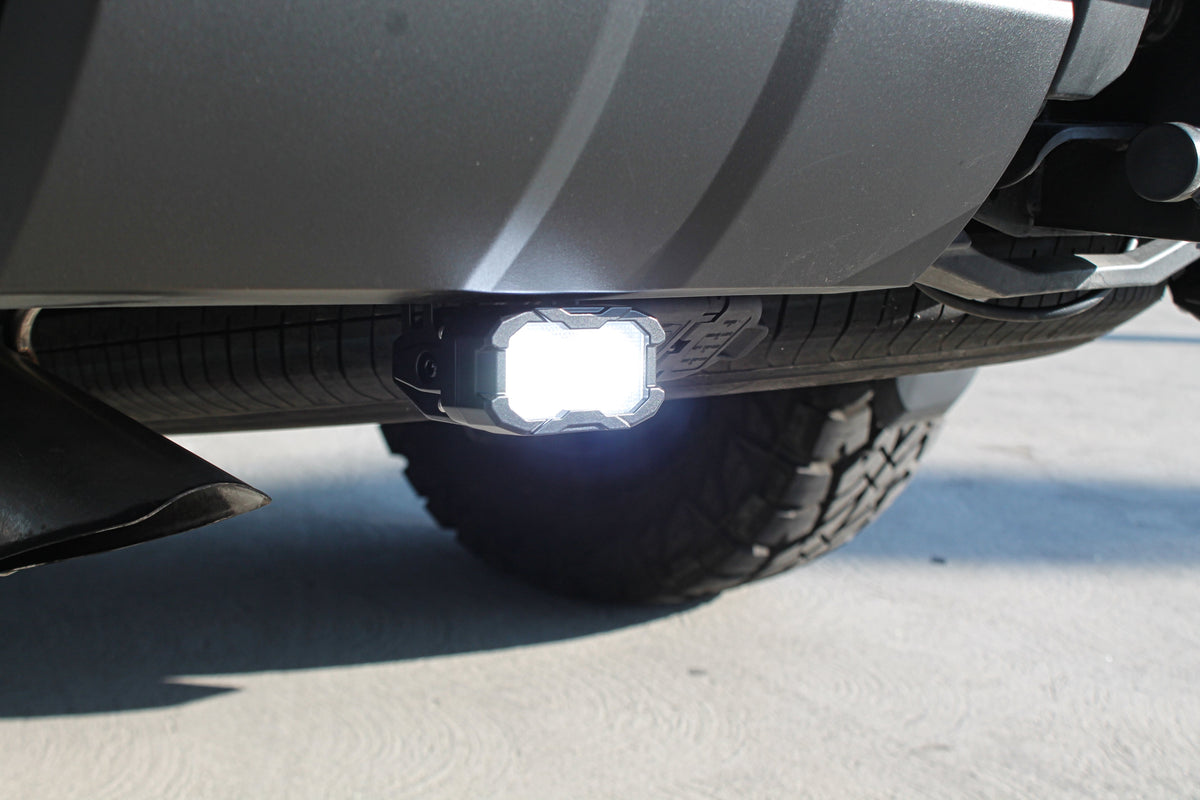

The white main lights are the high-output off-road lights. The amber or red backlight is a separate, low-output feature and does not replace the white flood beam.

SPECS AND FEATURES

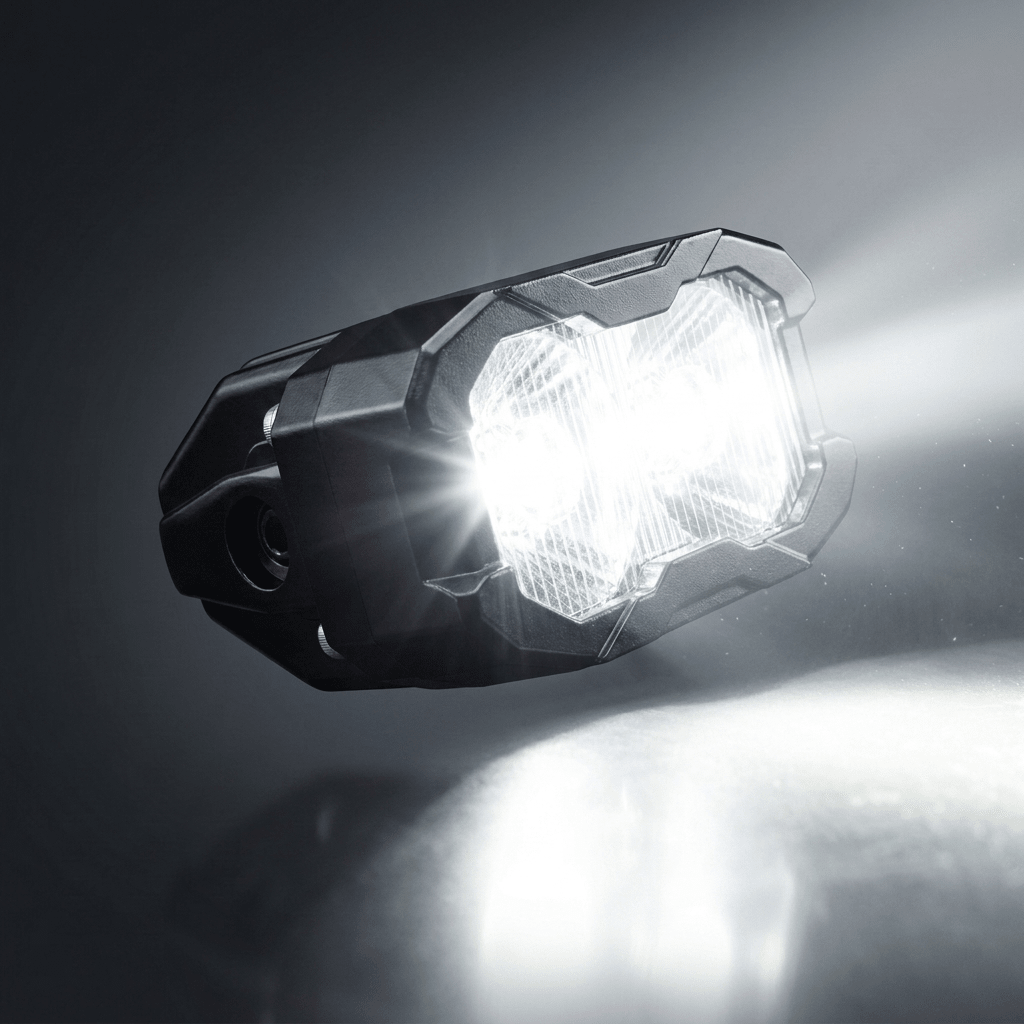

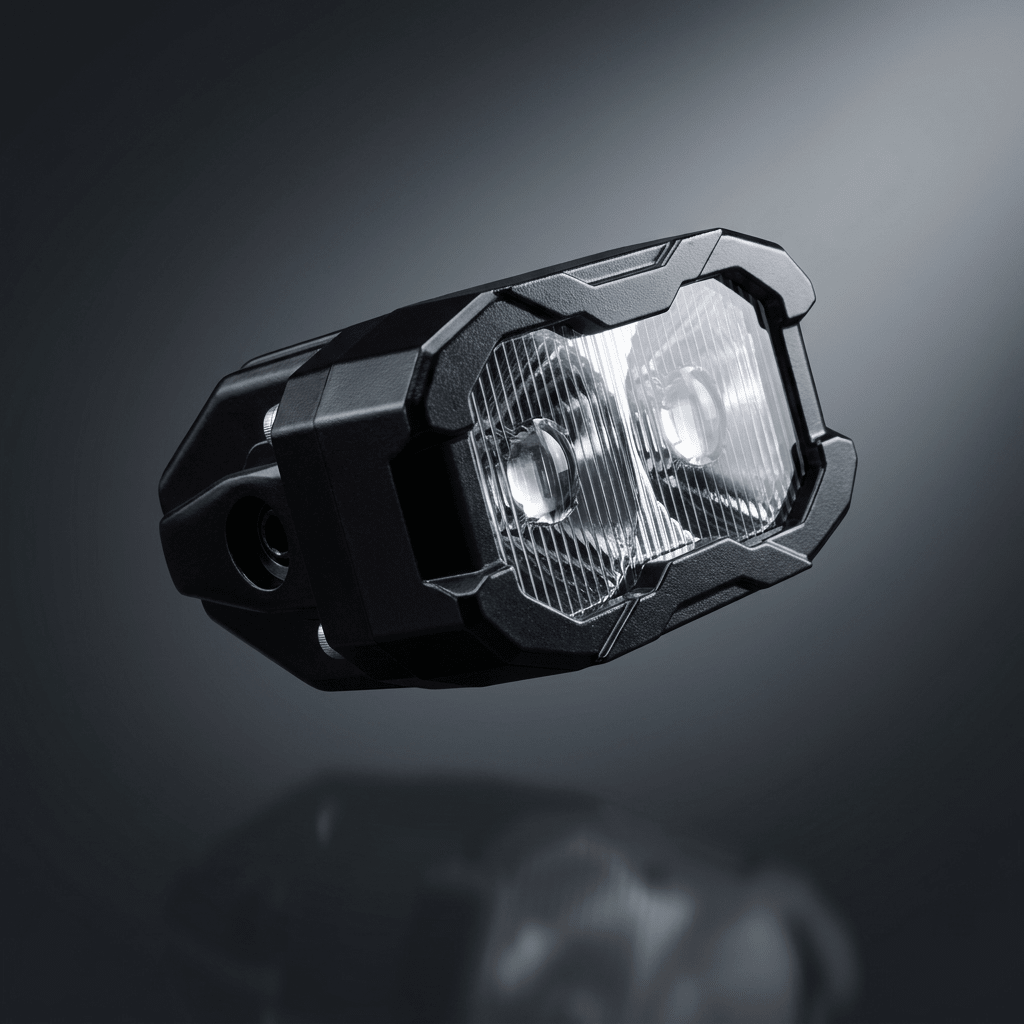

• Two 20W M&R Automotive PRO LED pods
• Flood beam pattern for close-range and wide rear-area coverage
• 19.8W actual power per pod
• 2.06A white-main-light draw per pod at 12V
• 0.03A amber or red backlight draw per pod at 12V
• 1,474 measured lumens per pod with lens

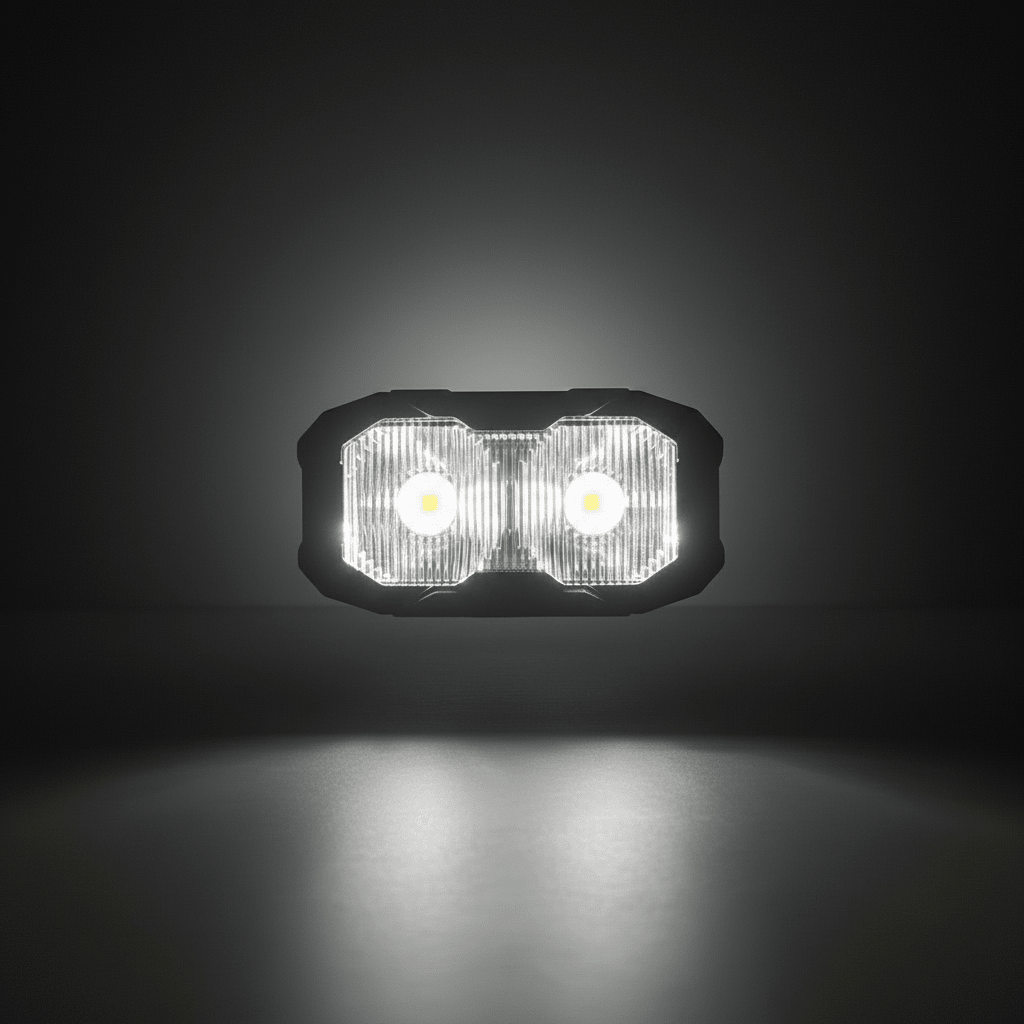

• TIR (Total Internal Reflection) lenses
• Luminus SST-20 LEDs
• 6000K white main beam
• Thermal-management system adjusts output based on temperature
• Powder-coated aluminum housing
• IP68-rated construction
• Rated 50,000-hour lifespan
• Lifetime manufacturer warranty
• Includes:
  • Two 20W PRO LED pods
  • Two vehicle-specific metal mounting brackets
  • All mounting hardware

PRODUCT DESCRIPTION

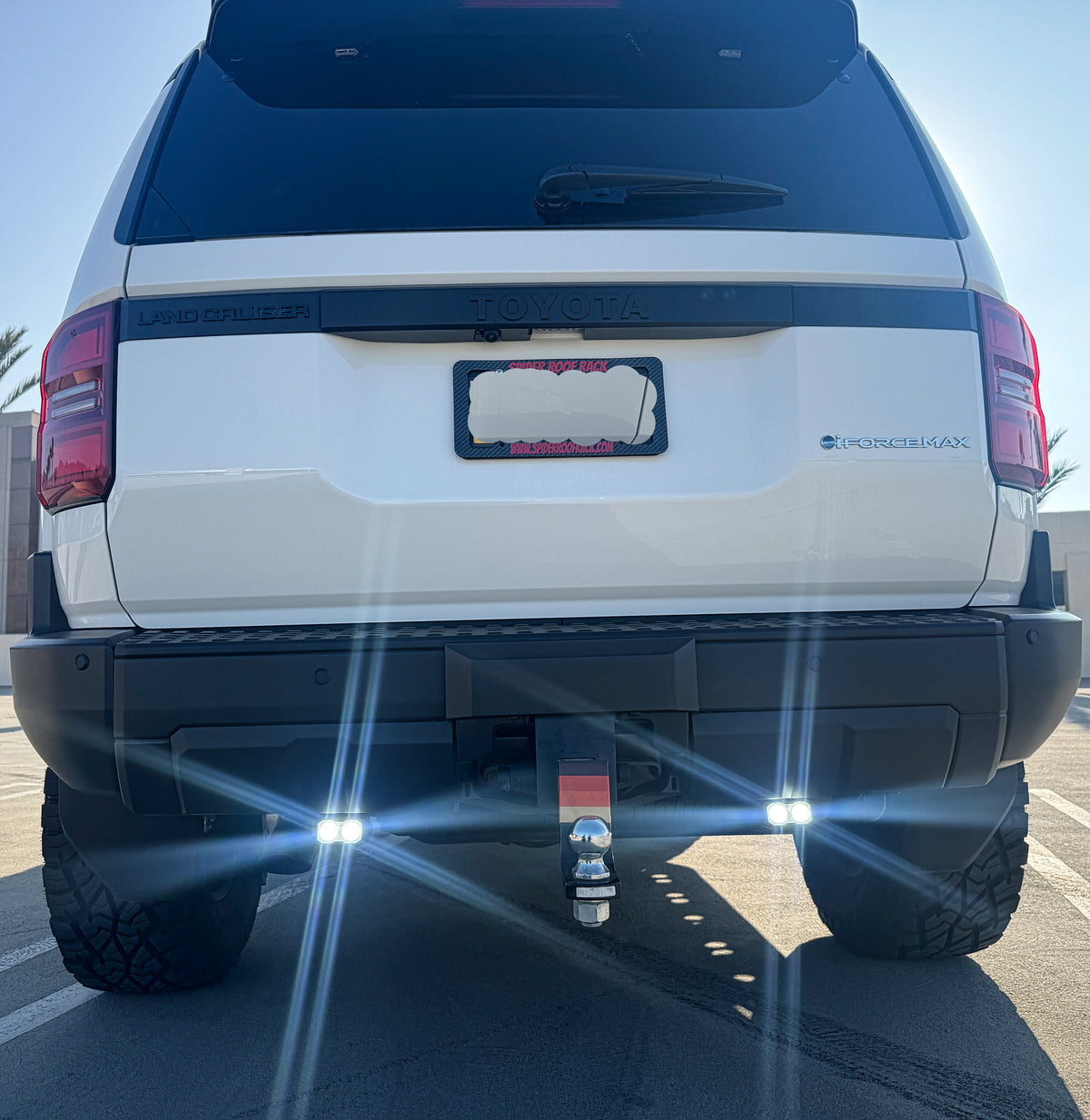

The factory reverse lights on the Land Cruiser are enough for a parking lot, but they do not do much when you are backing down a dark trail, lining up a trailer, setting up camp after sunset, or trying to see what is behind the truck during a recovery. This M&R Automotive kit adds two wide flood-pattern LED pods to put useful light behind your Land Cruiser where the factory lamps fall short.

The flood pattern is intentional. These are not long-distance spotlights aimed at the horizon. They are designed to fill in the ground and area behind the truck, making it easier to see rocks, ruts, drop-offs, trailer couplers, camp gear, and anything else the factory reverse lamps leave in the dark.

The brackets are built for the 250-Series Land Cruiser, so the kit bolts on without drilling. Choose amber or red backlights depending on whether you want the additional function wired as a turn signal, or in the red option's case, as a turn signal or brake light.

WHAT TO KNOW BEFORE YOU BUY

This kit does not automatically activate when you put the Land Cruiser in reverse. M&R designs the white main lights to be controlled through factory AUX wiring, a compatible aftermarket switch system, or its optional wireless harness. That lets you decide when the lights run rather than having them come on every time the transmission is in reverse.

Each pod has approximately 18 inches of wire. You will need separate 14-gauge, two-conductor wire to extend the wiring from the rear of the Land Cruiser to your power source. That extension wire and a primary wiring harness are not included with the kit.

OFF-ROAD USE NOTICE

The white main lights are for off-road use only. They are significantly brighter than factory reverse lamps and are not street legal for use as rear-facing auxiliary lighting on public roads.

INSTALLATION VIDEO

This official M&R Automotive video shows installation of the Land Cruiser reverse-light kit.

LIGHT OUTPUT VIDEO

See the official rear-light output before installing the kit on your Land Cruiser.

ABOUT M&R AUTOMOTIVE

M&R Automotive builds vehicle-specific LED lighting kits for trucks and SUVs. Its kits are designed around factory mounting locations for a cleaner installation than adapting generic brackets or drilling into your vehicle.
