M&R Automotive 30in Light Bar PRO for Toyota Tacoma 4th Gen (24-26) TRD & Trailhunter

FITMENT INFORMATION

• Toyota Tacoma TRD PreRunner (2024, 2025, 2026)
• Toyota Tacoma TRD Sport (2024, 2025, 2026)
• Toyota Tacoma TRD Off-Road (2024, 2025, 2026)
• Toyota Tacoma Trailhunter (2024, 2025, 2026)
• Toyota Tacoma TRD Pro (2024, 2025, 2026)

FITMENT NOTE

• Does not fit Tacoma SR, SR5, or Limited trims.
• The light bar mounts in front of the grille and does not interfere with the active grille shutters.
• Installation requires removal of the front grille and front bumper.
• No cutting or drilling is required.

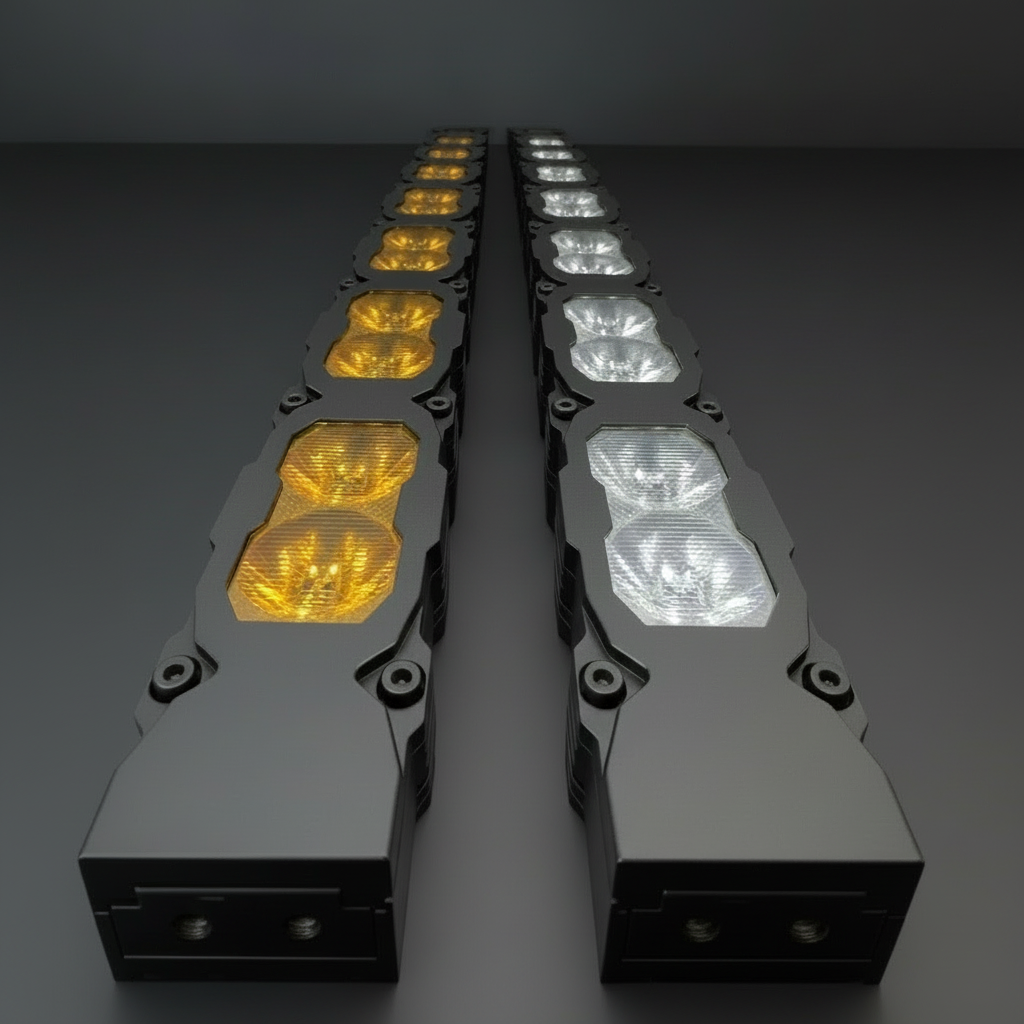

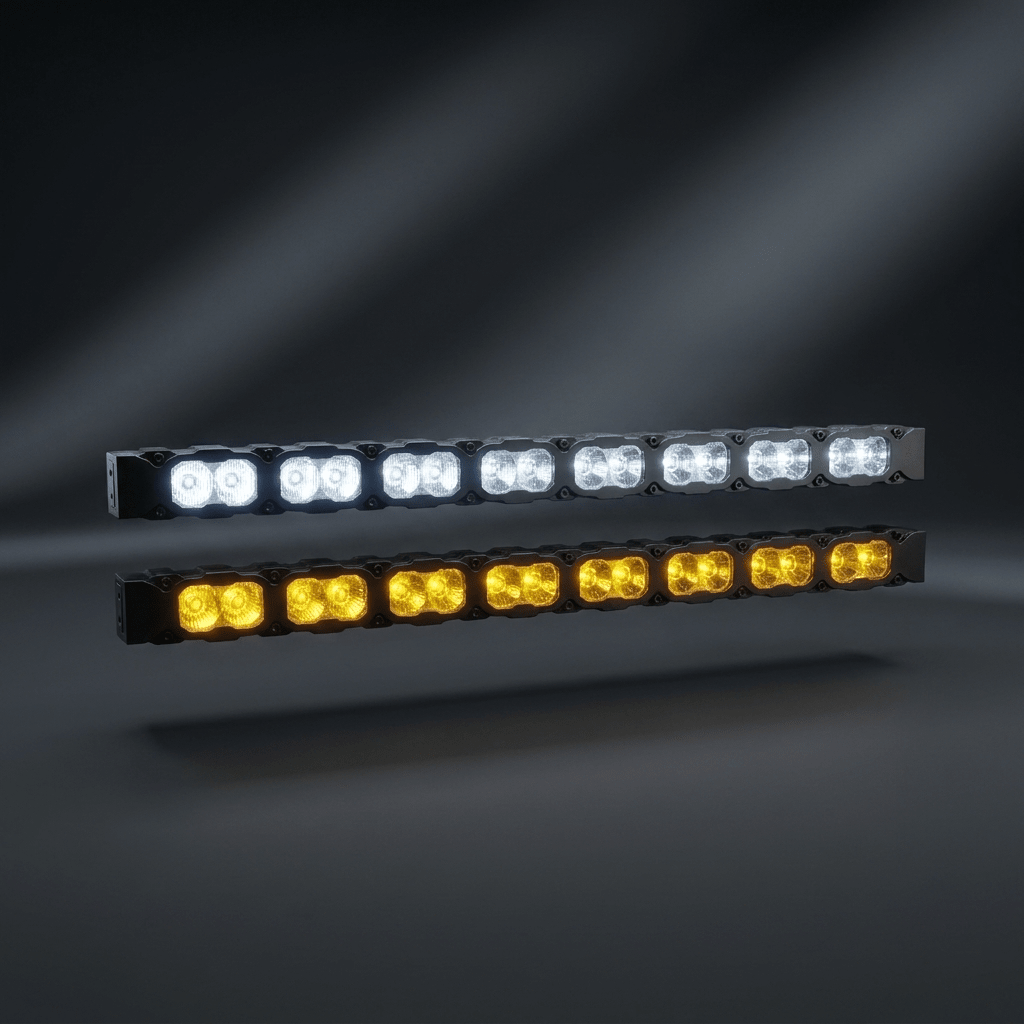

CHOOSE YOUR MAIN BEAM COLOR

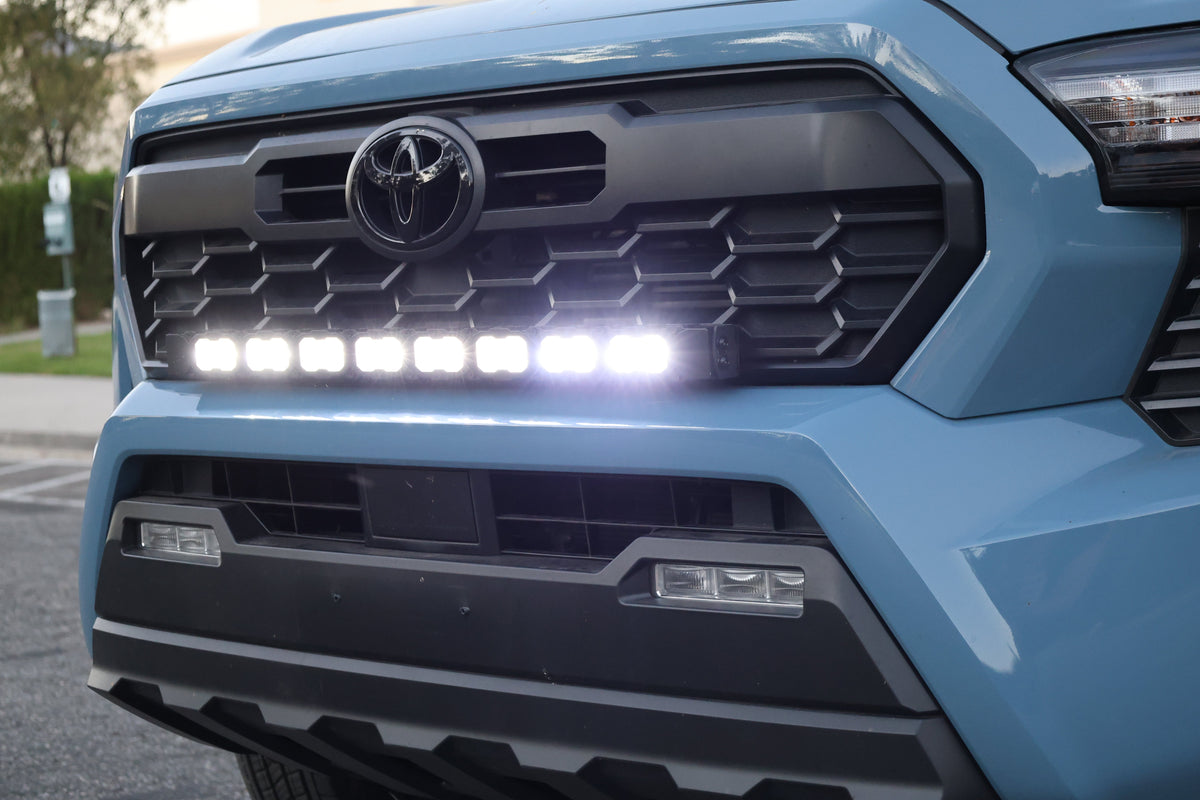

• White Main Beam with Amber DRL: Crisp white output for maximum visibility down the trail.
• Yellow Main Beam with Amber DRL: Better suited to dust, fog, rain, and snow where yellow light can be easier to use than white.

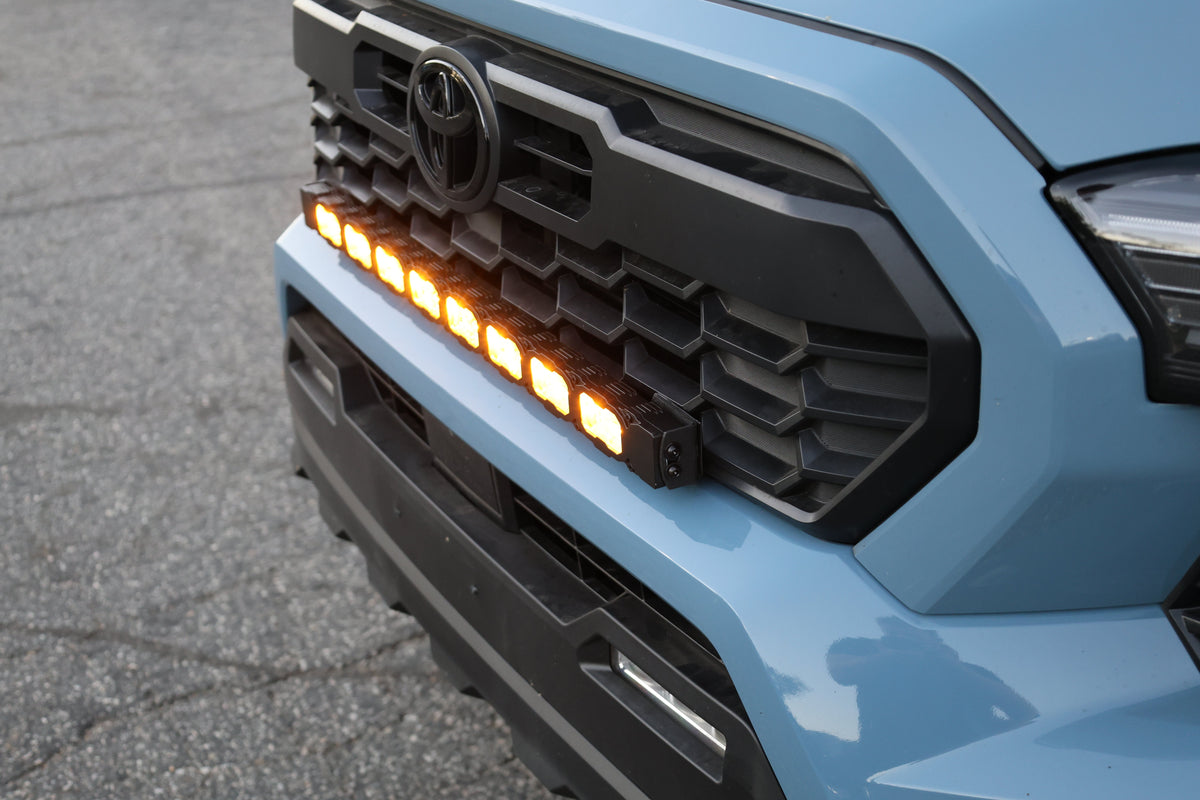

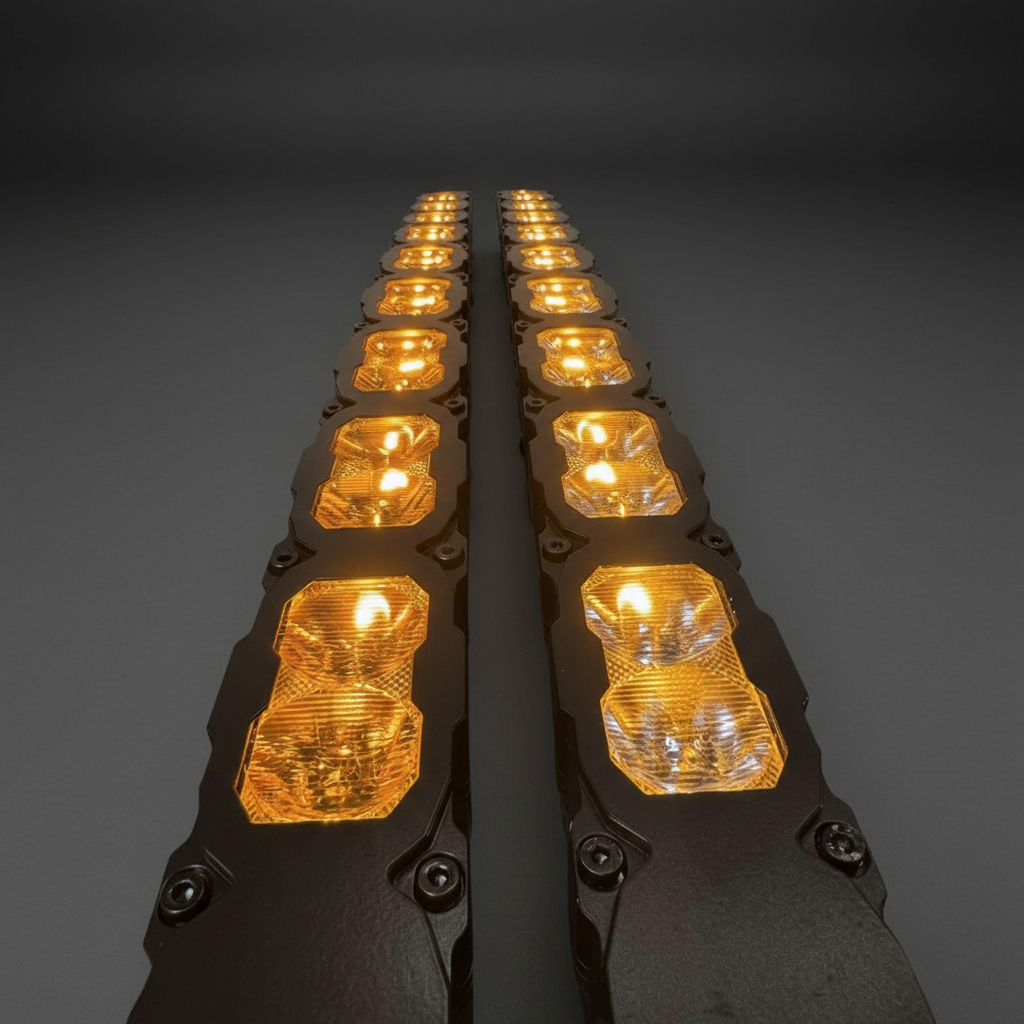

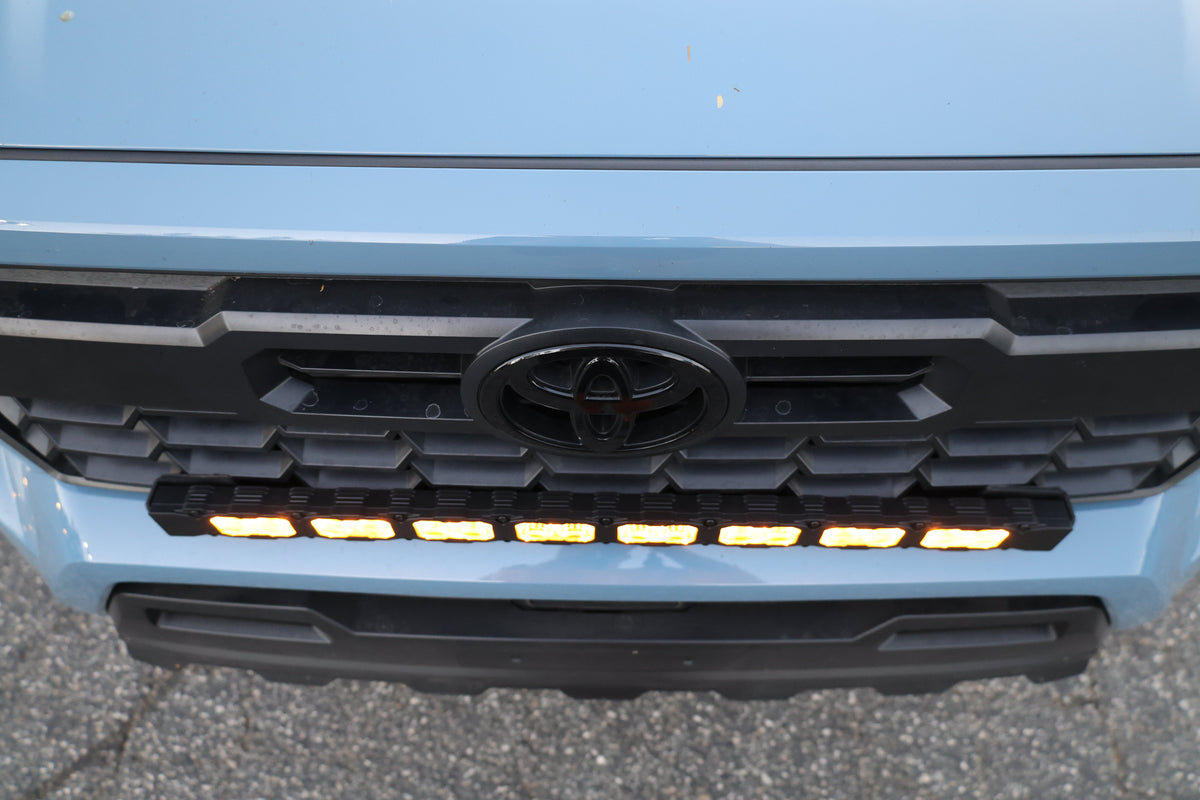

Both options include the same amber DRL backlight. The amber backlight is for appearance and visibility, not forward trail illumination.

SPECS AND FEATURES

• 30-inch M&R Automotive PRO light bar
• Combo beam pattern with spot and driving optics
• TIR (Total Internal Reflection) lens design
• 90-watt actual power draw
• 160-watt theoretical maximum power
• 7.5A main-beam draw at 12V
• 0.19A amber DRL draw at 12V
• 16 Luminus SST-20 LEDs
• 6000K color temperature
• Measured output with clear lens: 8,806 lumens
• Measured output with yellow lens: 6,846 lumens

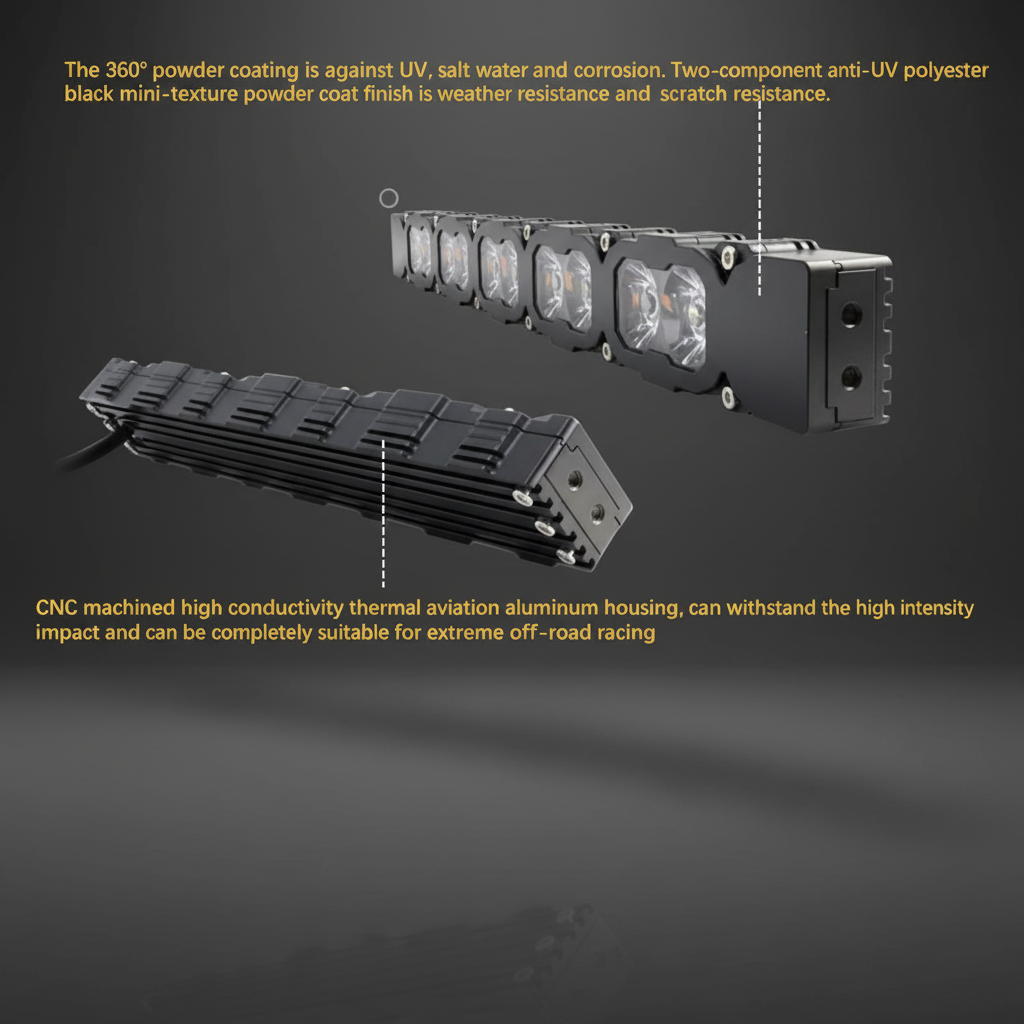

• UV polyester powder-coated aluminum housing
• Thermal-management system adjusts output based on temperature
• IP68-rated construction
• Rated 50,000-hour lifespan
• Powder-coated black mounting brackets
• Lifetime manufacturer warranty
• Includes:
  • One 30-inch PRO light bar
  • Four metal mounting brackets
  • All mounting hardware

PRODUCT DESCRIPTION

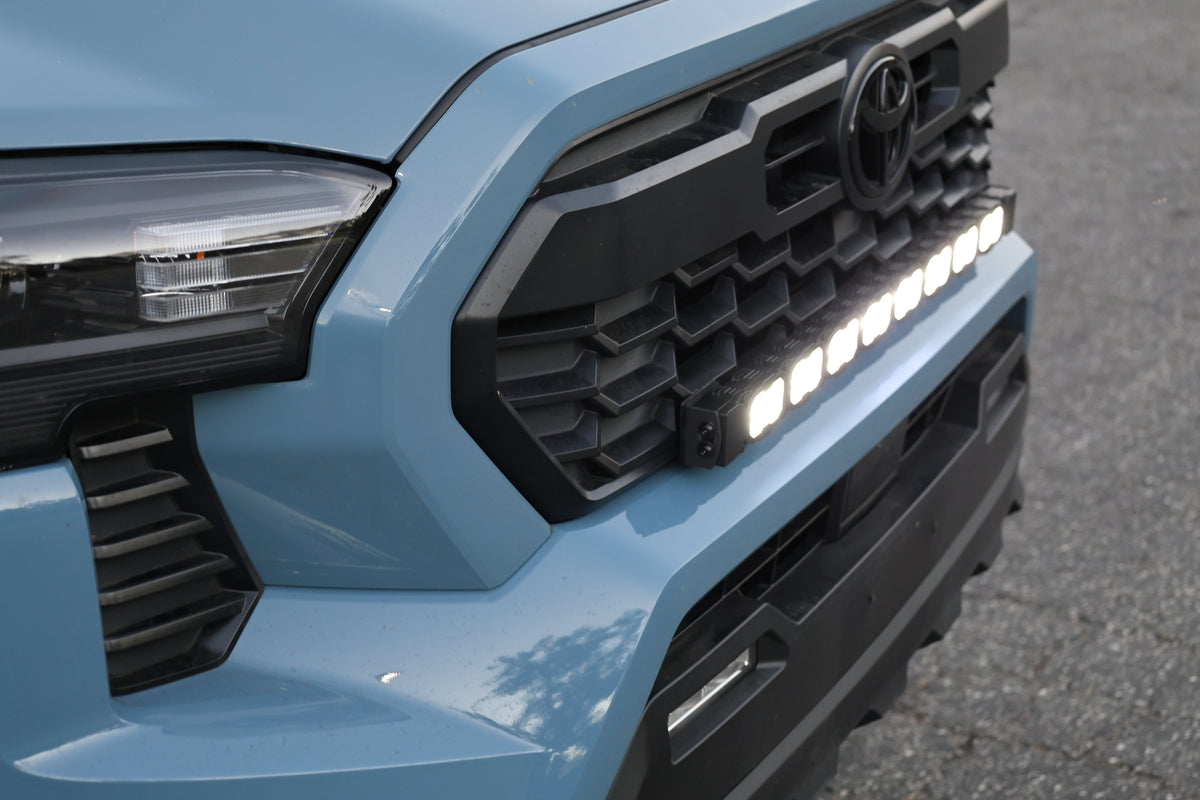

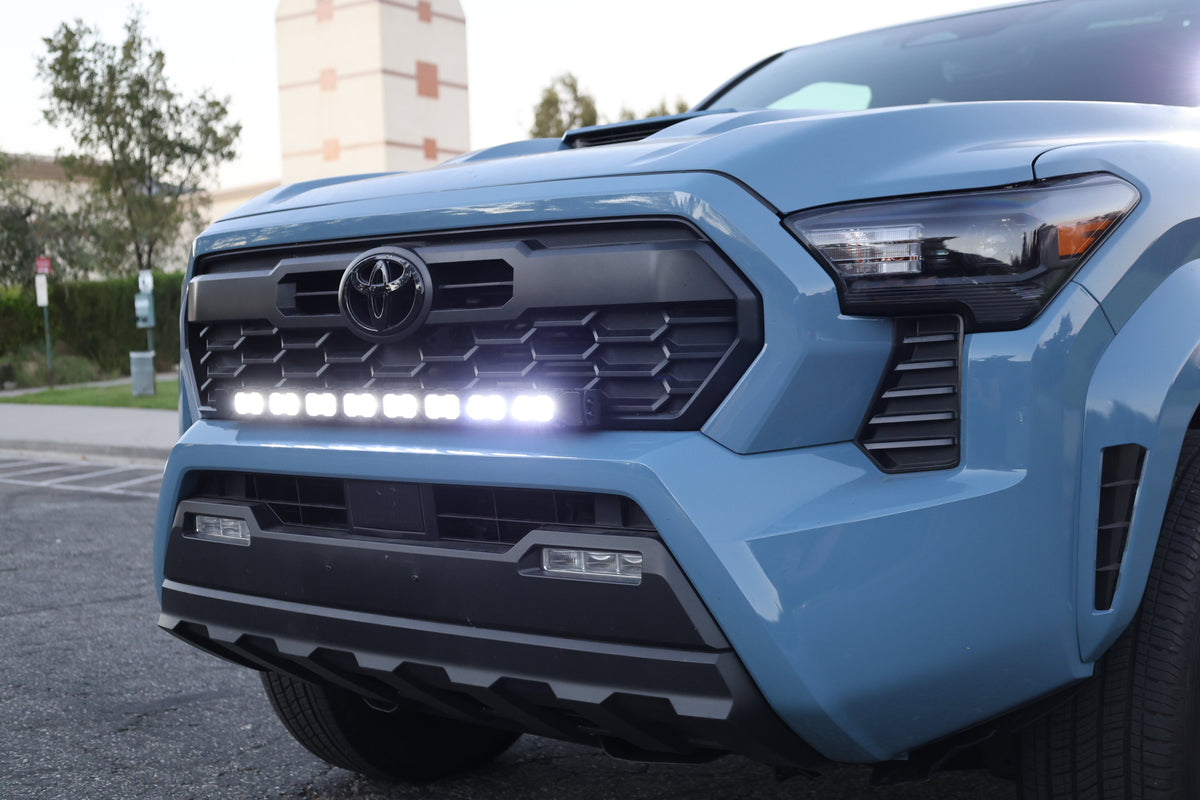

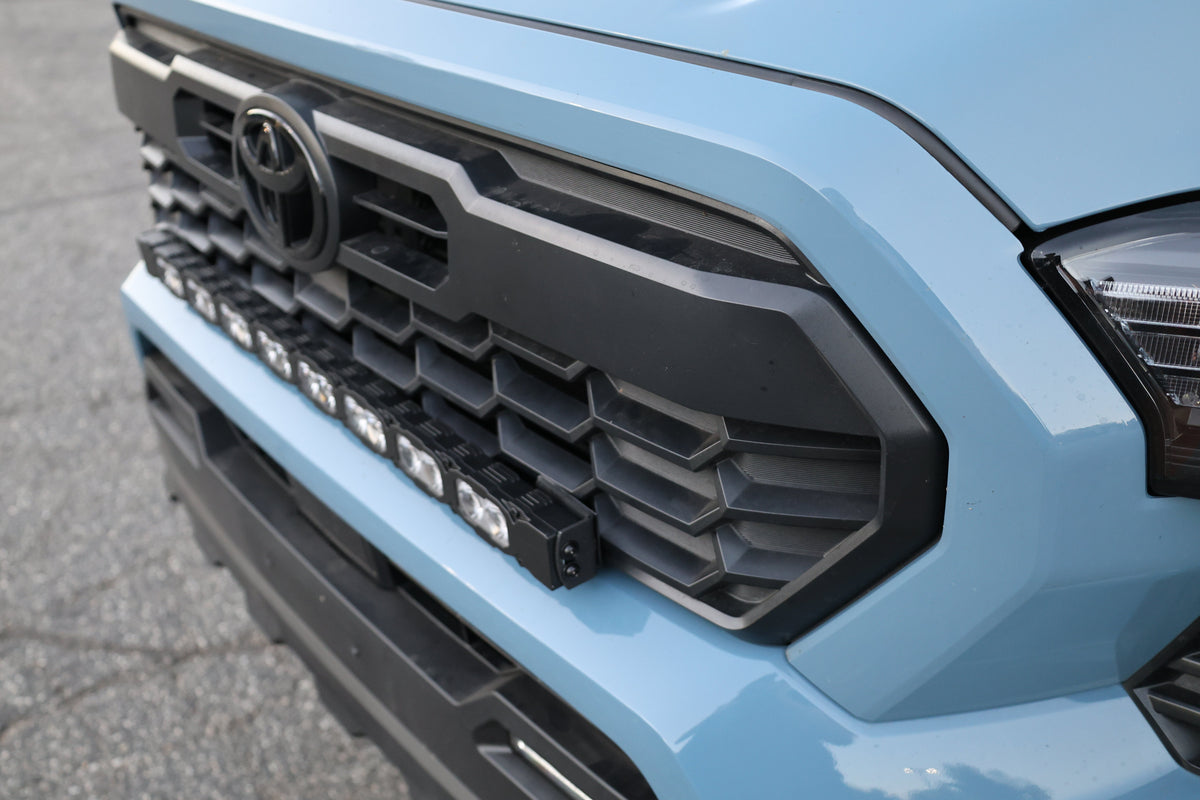

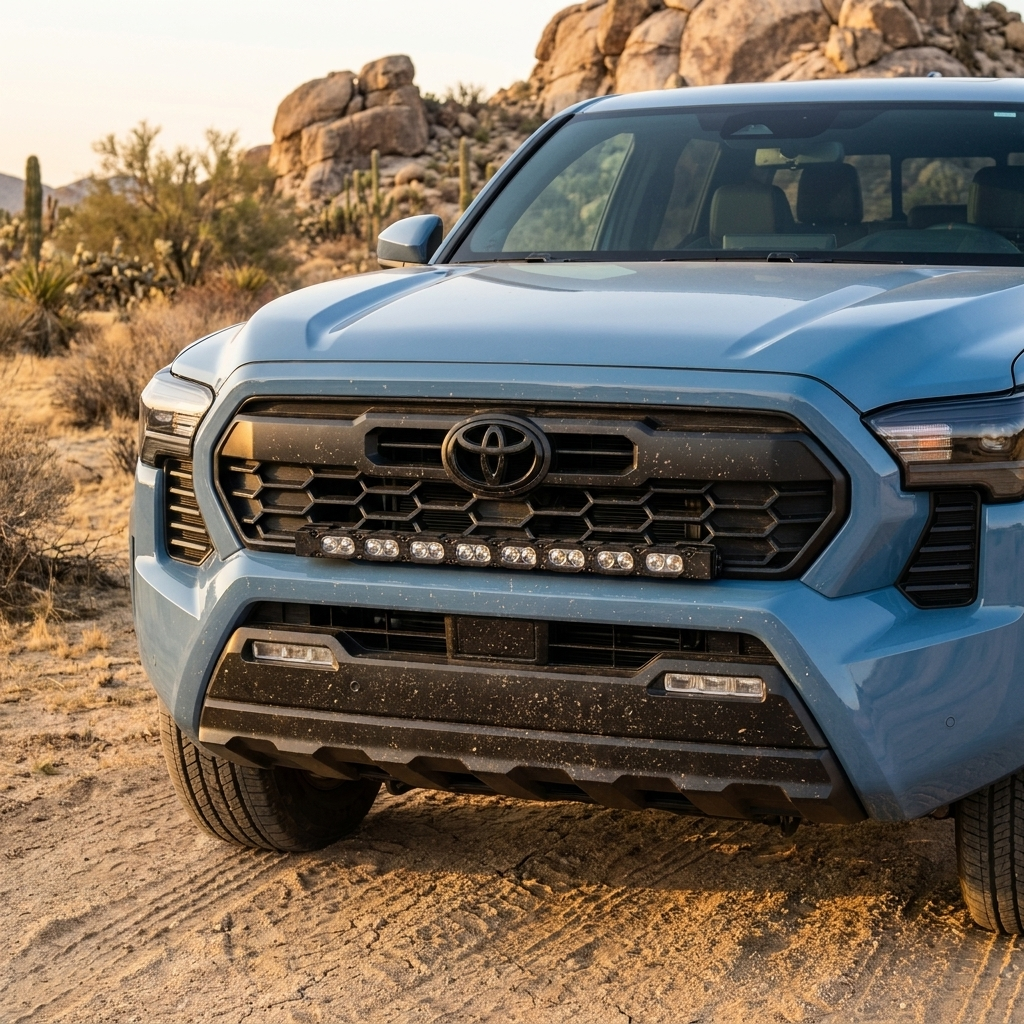

The M&R Automotive 30in Light Bar PRO gives your 4th Gen Tacoma a serious amount of forward lighting without hanging a bulky bar above the windshield or cutting into the bumper. It mounts cleanly behind the front bumper area, in front of the grille, for a low-profile OEM-style look that still puts useful light where you need it on dark trails, forest roads, and desert runs.

This is the higher-output PRO version, built around a TIR lens and a combo beam pattern. The spot optics help throw light farther down the road, while the driving optics fill in the area in front of your Toyota truck. Choose white for the brightest, clearest main beam or yellow for dusty, foggy, rainy, and snowy conditions. Both versions use the same amber DRL backlight for a clean daytime look.

The mount design keeps the bar clear of the active grille shutters and does not require cutting or drilling. You will need to remove the grille and bumper during installation, so this is a straightforward bolt-on kit, but not a five-minute driveway add-on.

WIRING REQUIREMENTS

M&R includes over six feet of wire on the light bar, enough to reach factory AUX-switch wiring on Tacomas equipped with it. A separate wiring harness is not included. If your truck does not have factory AUX wiring, you will need to use a compatible aftermarket harness or switch system.

OFF-ROAD USE NOTICE

The white and yellow main beams are for off-road use only and are not street legal. Use the amber DRL backlight separately for its appearance function when appropriate.

INSTALLATION VIDEO

This official M&R Automotive video shows the installation process for the Tacoma 30in Light Bar PRO.

LIGHT OUTPUT VIDEO

See the white and yellow PRO light-bar output on a 4th Gen Tacoma.

ABOUT M&R AUTOMOTIVE

M&R Automotive builds vehicle-specific LED lighting kits for trucks and SUVs. Its kits focus on clean mounting, usable off-road output, and hardware designed around the factory vehicle rather than a generic bracket solution.
